Steel Solutions & Wear Parts for the Cement Industry
The cement industry runs 24/7 under extreme mechanical stress, abrasive materials, and high temperatures. When a critical component fails — a clinker cooler plate cracks, a crusher hammer wears out, or a rotary kiln mouth plate warps — the cost of unplanned downtime far exceeds the price of the part itself.
Steeling supplies cement plants with both wear parts and structural steel solutions — from clinker cooler plates and rotary kiln components to steel silos and custom-fabricated structural systems. All parts are manufactured to drawing or sample in Turkey, with export-ready delivery to Europe, the Middle East, and global markets.
Cement Plant Wear Parts & Cast Components
High-wear contact parts in cement plants require materials that resist impact, abrasion, and thermal cycling. Steeling manufactures the following cast and machined wear parts for cement producers:
Stainless Steel Flap (Klepe)
The stainless steel flap (also known as a damper valve or klepe) is used in cement plant air ducts, separators, and material flow control systems. Manufactured from austenitic stainless steel grades, these flaps resist corrosion, heat, and mechanical fatigue in continuous operation.
Available in standard dimensions or custom-engineered to match your existing ductwork geometry.
Anvil / Hammer Block (Örs)
The anvil (örs) is a critical component in impact crushers and hammer mills used throughout cement production — from raw material crushing to clinker processing. Steeling produces anvils in both standard and hard-facing welded versions, where the wear surface is reinforced with specialized weld overlay to extend service life by 2–4x compared to standard cast anvils.
Hard-facing welded anvils are recommended for high-throughput applications with highly abrasive limestone or clinker feed.
Rotor Disk
The rotor disk is the central structural component of impact crushers and hammer mills in cement plants. It carries the hammers or blow bars and must withstand continuous impact loading and centrifugal forces at operating speeds.
Steeling machines rotor disks to tight dimensional tolerances, ensuring proper hammer alignment, dynamic balance, and compatibility with your existing crusher shaft.
Clinker Cooling Plate (Klinker Soğutma Plakası)
Clinker cooling plates are the primary wear component in grate coolers — one of the most abrasion-intensive zones of a cement plant. These plates must simultaneously withstand temperatures up to 1,400°C, abrasive clinker movement, and mechanical stress from the grate drive system.
Steeling manufactures clinker cooling plates from high-chromium cast alloys and heat-resistant steel grades, dimensioned to your cooler model and grate system specifications.
Roll Wear Ring (Vals Aşınma Ringi)
Roll wear rings are used in vertical roller mills (VRM) and roller presses for raw material grinding and cement finish grinding. As the rolls compress and grind the material bed, the wear rings take the brunt of abrasive contact.
Steeling produces wear rings in high-chromium white iron and other abrasion-resistant alloys, with surface hardness values tailored to your mill’s operating parameters.
Crusher Hammer / Clinker Crusher Hammer (Kankasör Çekici)
Crusher hammers are consumable impact parts in hammer crushers used for raw material sizing and clinker breaking. In cement plants, hammer wear is one of the highest-frequency replacement cycles, making material selection and geometry critical for cost control.
Steeling manufactures crusher hammers in a range of alloy grades — from manganese steel for tough impact resistance to high-chromium iron for abrasion-dominant applications — with geometry matched to your crusher model.
Rotary Kiln Exit Mouth Plate (Döner Fırın Çıkış Ağız Plakası)
The rotary kiln exit mouth plate (also called kiln nose ring or kiln hood plate) seals the outlet end of the rotary kiln, where clinker exits at temperatures exceeding 1,000°C. This component experiences severe thermal shock, clinker abrasion, and oxidizing atmosphere simultaneously.
Steeling fabricates kiln exit mouth plates from heat-resistant steel grades and cast alloys, manufactured to drawing to match your kiln diameter, outlet geometry, and mounting configuration.

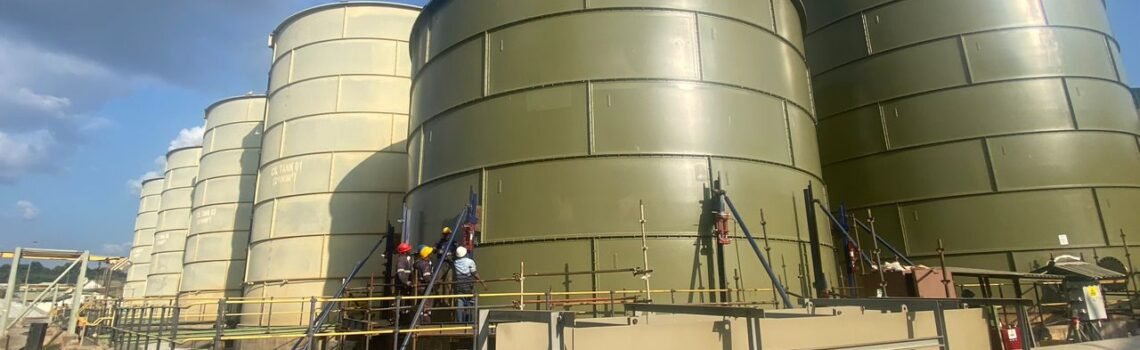

Steel Silos for Cement and Raw Material Storage
Beyond wear parts, bulk storage infrastructure is a critical steel application in every cement plant. Steel silos are the standard for storing clinker, finished cement, fly ash, limestone powder, raw meal, and additives.
Steeling manufactures modular steel silos engineered specifically for cement industry conditions:
- Structural capacity for high bulk-density materials (clinker: ~1,500 kg/m³)
- Optimized discharge cone geometry to prevent bridging and rat-holing
- Anti-corrosion surface treatment options
- Customizable capacity and diameter
- Faster installation versus concrete silos, with lower foundation load requirements
For capacity expansions and greenfield projects, steel silos offer significantly shorter lead times than concrete alternatives — a decisive advantage when production timelines are fixed.
Structural Steel for Cement Plant Infrastructure
Cement facilities depend on steel-framed structures throughout the process line. Steeling fabricates structural components for:
- Conveyor support towers and trestles
- Platform and walkway systems
- Equipment support frames
- Preheater tower structural steelwork
- Dust filter and bag house support structures
- Access stairs and safety structures
Using laser cutting, plasma cutting, CNC bending, and welding, Steeling delivers structural components with the dimensional accuracy required for integration with heavy rotating equipment and process machinery.
Custom Fabricated Parts for Cement Plants
When standard catalog products don’t meet your specification, Steeling’s in-house fabrication capability covers:
- Chutes, hoppers, and transfer point liners
- Equipment enclosures and protective covers
- Wear liner systems for conveyor impact zones
- Custom mounting, connection, and adjustment elements
- Heat shields and thermal insulation brackets
All parts are manufactured to customer drawings or reverse-engineered from samples. Tolerances, material grades, and surface treatments are confirmed before production.
Why Cement Producers Work with Steeling
| Need | Steeling’s Response |
|---|---|
| Exact-fit wear parts | Manufactured to drawing or sample — no approximation |
| Faster replacements | Export-ready stock and short lead times from Turkey |
| Material flexibility | Cast alloys, stainless steel, heat-resistant grades, hard-facing |
| Cost control | Direct manufacturer pricing with no intermediary markup |
| Project scope | Single-source for wear parts + silos + structural steel |
Frequently Asked Questions
What cement plant wear parts does Steeling manufacture?
Steeling manufactures clinker cooling plates, rotary kiln exit mouth plates, crusher hammers, anvils (including hard-facing welded versions), rotor disks, roll wear rings, and stainless steel flaps — as well as custom-fabricated parts to drawing.
Can Steeling manufacture parts to my existing specifications or samples?
Yes. We manufacture wear parts and structural components to customer-supplied drawings, CAD files, or physical samples. Our engineering team can also reverse-engineer worn parts to produce replacement components that match your original specifications.
What materials are used for cement plant wear parts?
Depending on the application: high-chromium white iron (abrasion resistance), manganese steel (impact resistance), austenitic stainless steel (corrosion and heat resistance), heat-resistant cast steel (thermal cycling), and hard-facing weld overlay alloys for surface-critical applications.
Does Steeling supply complete cement plant projects or only individual parts?
Both. We supply individual replacement parts on short lead times as well as complete project packages combining wear parts, steel silos, and structural steel fabrication for new plants or capacity expansions.
What is the lead time for cement industry wear parts?
Lead times depend on complexity and quantity. Standard cast wear parts typically ship within 3–6 weeks. Custom or high-complexity components may require longer. Contact us with your specifications for a firm timeline.
Does Steeling export cement industry products?
Yes. Steeling is an export-focused manufacturer based in Turkey, supplying cement producers in Europe, the Middle East, North Africa, and global markets. All products are export-packaged and documented for international freight.
Related Services
- Casting Services — Wear parts from high-chromium iron, manganese steel, and heat-resistant alloys
- Machining Services — Precision machining of cast and forged parts to final dimensions
- Laser Cutting Services — Structural components and plate parts
- Modular Silo Systems — Cement and clinker storage silos
Ready to source cement plant components from a direct manufacturer?
Contact Steeling with your part drawings, samples, or project specifications. We’ll respond with a quote within 24 hours.
